PSA Nitrogen Generator for Industrial Gas Supply

What a PSA Nitrogen Generator Actually Does

You compress air, you strip the oxygen out, and what flows out the other end is nitrogen you own outright. That's the whole idea - and it usually kills the liquid nitrogen truck invoice within the first year.

Ours is a pressure swing adsorption machine. Clean, dried compressed air enters one of two towers packed with carbon molecular sieve. Under pressure the sieve grabs oxygen and water vapor far faster than it grabs nitrogen, so nitrogen passes through and heads to your header. When the sieve in that tower fills up, the system drops it to atmospheric pressure. The oxygen releases, vents away, the sieve regenerates, and the second tower takes over. Valve switching runs on a PLC cycle you never have to babysit.

The word "swing" refers to that pressure swing - adsorb at high pressure, desorb at low. No chemicals, no consumables beyond filters, no cryogenic cold box. Just sieves, valves and controls doing the same job for roughly a decade.

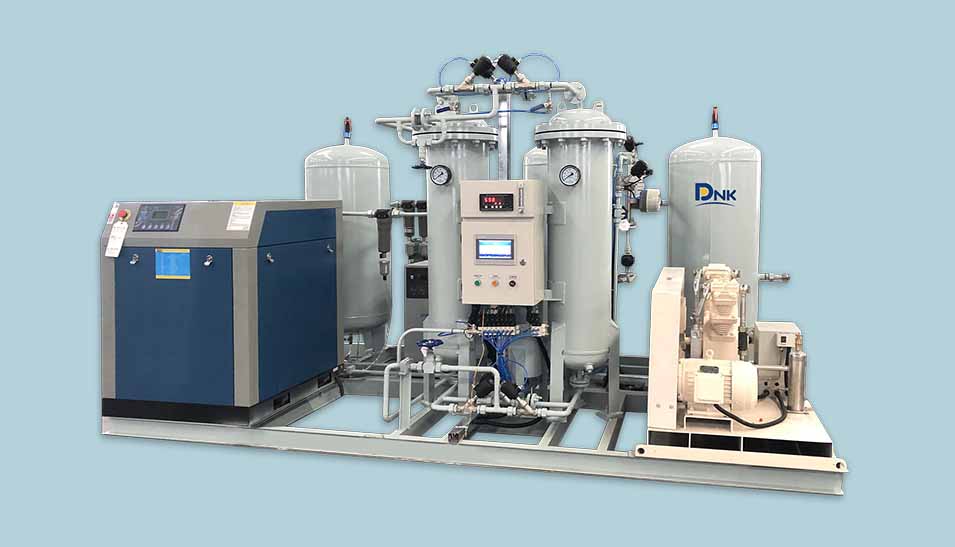

Inside the KYPN Skid: Five Modules That Matter

Every set we ship groups into five blocks, and you can buy it as one skid or as separate pieces:

• Air compressor - the muscle. Sized to your flow so it doesn't deadhead.
• Air treatment unit - precision filters, refrigerated dryer, activated carbon bed. Oil, water and dust get removed here because they're what kill molecular sieves.
• Air buffer tank - smooths pulsing, steadies pressure, stops the compressor from rapid-cycling.
• Adsorption host - twin towers, carbon molecular sieve, pneumatic valves, silencers. This is the separation engine.
• Control and monitoring system - PLC with touchscreen: one-button start, online purity readout, fault alarms, history logging.

Ask for an analyzer, and we wire a residual-oxygen transmitter into the loop so purity is a number on your screen rather than a guess.

Purity Is a Dial, Not a Commitment

95% is plenty for blanketing a tank farm. 99.9% suits heat treatment. Electronics and laser cutting want 99.999% or better, and sometimes helium/neon specs too. You pick the purity; we spec the tower size, sieve charge and cycle time around it. The KYPN line spans that whole 95% to 99.9995% range across ten standard models - and custom flows beyond them.

KYPN Technical Parameters

Where These Plants Earn Their Keep

Chemical and new-energy plants use the gas for blanketing, pipeline purging and lithium battery line protection. Food packers flush pouches and bottles. Metal mills run bright annealing and sintering furnaces on it. Mines inject it for fire control; tire makers mold with it. Labs, shipyards and electronics assembly lines order the smaller skids.

Why Factory-Direct Beats a Reseller

We are the factory: 100,000+ m² of workshops in Kaifeng, 600+ staff, 36 patents, A1/A2 pressure vessel licenses in hand. Two thousand-plus project cases across 20+ countries means the valve sizing questions were answered years ago on someone else's site, not on yours.

Compare against buying liquid nitrogen delivered by truck: PSA on-site gas typically runs at a fraction of the per-cubic-meter cost after the machine pays for itself, you're never stranded waiting on a delivery during a shutdown, and purity doesn't drift with whatever arrived in the last tanker.

MOQ, Lead Time and What We Need From You

One set is a full order - MOQ is 1 unit. To quote properly, send four numbers: flow (Nm³/h), purity (%), inlet pressure available, and where the gas goes. An engineer replies within 24 hours with a sized proposal and a datasheet, not a brochure.

FAQ

Which Industries Actually Run Our PSA Units

We ship KYPN sets into ten different duty cycles, and knowing which one you are in changes how we size your machine. Here is where they work every day:

• Chemical and petrochemical plants - pipeline purging, reactor blanketing, inert gas for powder transfer. Purity usually 99.9%; flow follows the largest single purge event, not the average.
• Steel and metallurgy - nitrogen for annealing lines, blast-furnace cooling, and laser cutting assist gas on stainless plate.
• New energy and battery lines - glove-box and filling environments where the spec is often 99.999% or better. These orders get the twin-tower plus polishing treatment.
• Food and beverage - modified atmosphere packaging, wine blanketing, grain silo inerting. Food-grade air treatment and oil-free options are specified at order time.
• Pharma and laboratories - protective gas for packaging lines and lab gas generators where redundancy matters more than footprint.
• Shipping and mining - inerting of fuel tanks and coal seams; both run dusty, hot, and unmanned, so we upsized filtration and specified rugged valves.
• Tire and rubber - curing press inflation, where sulfurous air makes sieve life the number one design concern.

When you send an inquiry, tell us the industry and the worst-case demand. That single sentence lets us shortcut three rounds of sizing emails.

How We Build, Test, and Ship Your Unit

Every KYPN order moves through the same six gates inside our Kaifeng plant, and you get the records at shipment:

• Sizing review. Your flow, purity, pressure, altitude and ambient data go into our selection sheet. If your site sits at 1,500 m elevation, compressor selection changes - altitude derating is real and cheap to handle on paper, expensive to handle after commissioning.
• Component matching. Compressors, dryers and valves come from brands we have co-engineered with for years; the towers, buffer tanks and skids are fabricated in our own A1/A2 licensed workshops.
• Factory run. The complete unit runs on our test pad for a full cycle with a portable oxygen analyzer on the product line. You are welcome to attend the run or receive the logged purity curve.
• Export packing. Towers and tanks get shock blocks and desiccant; electronics ship in moisture barrier bags. A 40-foot container typically takes two full skids plus spares.
• Commissioning support. Remote video guidance is free and works for most installs. For larger plants we dispatch engineers; travel and visa logistics are quoted separately and honestly.
• Spares logic. We pre-ship the valve kits and filter elements that wear first, so your team is not waiting on a courier mid-shutdown.

Sets leave the gate with a wiring diagram, PLC program documentation, operation manual in English, and the test records above - the same documentation package your maintenance department will want on file.

Running Cost: What Owners Ask Us Last

Electricity is the whole story. The compressor and the dryer are essentially the entire electric load of a PSA nitrogen plant. Send us your flow, purity and local tariff and we will hand you the sized power draw and the year's operating number - compare it against your liquid nitrogen bill, and at three-shift duty the payback is frequently inside the first year.

Sieve life is the second question. With proper upstream oil and water removal, carbon molecular sieve holds performance for 8-10 years; the failures we are called about are almost always a saturated filter or a refrigerated dryer that was never serviced, not the sieve itself. The maintenance checklist we ship is four pages precisely because there are not many things to do.

A third detail people forget: turndown. A PSA unit stops on demand and restarts in minutes, so if your plant runs weekends-dark your electricity follows your production. Cryogenic supply never does that - storage tanks keep boiling whether you consume or not.
